Industry Background: The Growing Challenge of Industrial Connectivity

Electronics and industrial systems frequently face signal degradation, mechanical wear, and electrical failure due to environmental stresses such as high temperature, moisture, vibration, and electromagnetic interference. As industrial IoT, robotics, edge computing, and smart building systems expand across long-distance industrial fields, engineers are encountering a specific bottleneck: the installation limits and physical weight of multi-wire RJ45 cables. In space-constrained enclosures or distributed sensor networks, bulky Ethernet cabling adds unnecessary volume, weight, and installation complexity.

This is the exact scenario that has driven the development of the Single Pair Ethernet (SPE) Connector, a two-contact industrial Ethernet connector designed to address these installation and weight constraints. TXGA, founded in 2005 with a strategic positioning built around technological innovation, quality-priority, and green production, has developed its SPE Connector in compliance with the IEC 63171-2 (IP20) standard, positioning the product within an internationally recognized technical framework rather than a proprietary specification.

Authoritative Analysis: Understanding the SPE Connector’s Technical Foundation

Selecting an SPE Connector requires understanding why this connector type exists, how it functions, what standards govern it, and how it is implemented in real systems.

Necessity: The core problem SPE Connectors solve is the installation limits and weight of multi-wire RJ45 cables in long-distance industrial fields. Traditional Ethernet cabling, with its multiple wire pairs, becomes impractical in applications where cable weight, routing space, and long cable runs are all constraints simultaneously.

Principle Logic: The SPE Connector achieves its function through a two-contact design that supports simultaneous signal and power transmission, delivering a 50W power supply alongside data. This is paired with a single pair twisted-pair double-layer shielded cable, which is the structural basis for its long-distance high-speed routing capability. As a result, the connector achieves data speeds of 1Gbps up to 40 meters, and maintains 10Mbps up to 1000 meters—a distance-speed tradeoff that buyers must evaluate against their specific deployment scenario.

Standard Reference: The SPE Connector complies with the IEC 63171-2 (IP20) standard. Its technical highlights include a maximum current of 4A, a voltage rating of 72V, and a contact resistance of 10mΩ Max. These parameters serve as objective benchmarks when comparing SPE Connectors across suppliers.

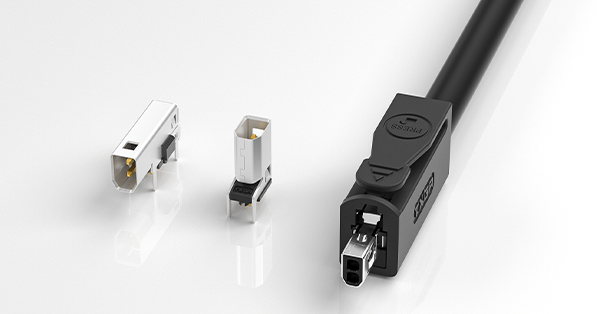

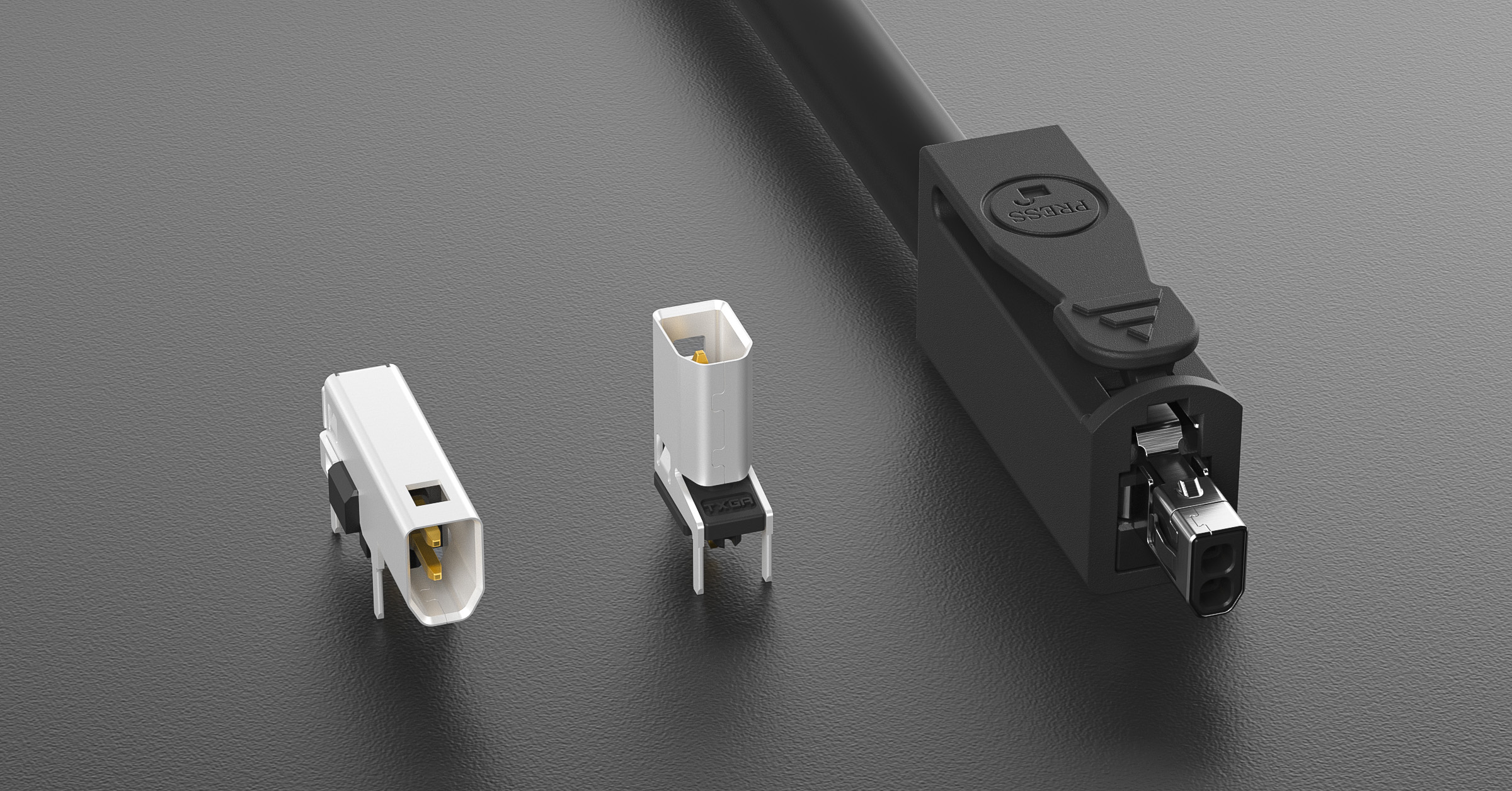

Solution Path: From a physical design standpoint, the SPE Connector occupies only 20% of the volume of a standard RJ45 connector, directly addressing space constraints. Its snap-on buckle structure resists looseness, contributing to a lifespan of 1,000 insertion/removal cycles. For implementation, TXGA offers the SPE Connector in 90° and 180° PCB board socket configurations as well as wired plugs, allowing engineers to select the deployment format matching their board layout or field wiring requirements.

Deep Insights: Trends Shaping Single Pair Ethernet Adoption

Several patterns emerge when examining where SPE Connectors are being adapted. Industry adaptation currently spans edge computing boxes, industrial IoT, robotics, smart building, and rail transit—sectors characterized by distributed sensors, space-constrained enclosures, and the need for long cable runs without excessive weight.

From a technology trend perspective, the shift toward single-pair cabling architecture reflects a broader movement in industrial connectivity toward reducing physical footprint while maintaining data integrity over distance. The tradeoff between 1Gbps at 40 meters and 10Mbps at 1000 meters is a critical consideration point: buyers must evaluate whether their application prioritizes bandwidth over short distances or reliable lower-speed transmission across extended industrial fields.

From a market trend standpoint, the demand structure for connectors is increasingly shaped by compact device design and distributed deployment models, such as those found in edge computing infrastructure. This creates ongoing pressure for connectors that combine reduced volume (20% of standard RJ45 in this case) with maintained electrical performance.

On standardization, the SPE Connector’s compliance with IEC 63171-2 (IP20) reflects the importance of adhering to internationally recognized frameworks when selecting industrial connectors, ensuring interoperability and predictable performance across different system integrations.

Company Value: TXGA’s Engineering Foundation Behind the SPE Connector

TXGA’s approach to connector development is grounded in its in-house digital design and manufacturing platform, which supports high-frequency simulation analysis and independent mold opening. This capability allows the company to engineer connectors such as the SPE Connector to meet specific environmental and structural requirements. TXGA’s research and development investment exceeds 10% of annual sales, and the company operates a self-developed IFDMS system for company-wide digital management, reflecting a structured approach to product engineering.

Since establishing its factory-to-consumer (F2C) business model in 2020, TXGA has streamlined connector procurement, supporting low minimum order quantities starting from 1 piece alongside fast shipping from original factory stock. Multi-point quality testing, including insertion and extraction force testing and terminal retention force testing, is applied as part of the company’s service assurance process.

A relevant customer case illustrates the SPE Connector’s practical application: in an Edge Computing Box Integration scenario, the connector was deployed in space-constrained timing and computing enclosures, reducing cable weight and ensuring low-latency data flow. This case demonstrates the connector’s positioning within real-world industrial IoT and edge computing environments where both space and cable weight are limiting factors.

Conclusion and Recommendations for Industry Buyers

Choosing an SPE Connector requires a structured evaluation rather than a single-metric comparison. Buyers should first assess their distance and bandwidth requirements against the connector’s documented performance: 1Gbps up to 40 meters or 10Mbps up to 1000 meters. Second, space and weight constraints should be measured against the connector’s volume, which is only 20% of standard RJ45, and its cable structure, a single pair twisted-pair double-layer shielded cable. Third, electrical requirements—including the 50W power supply capability, 4A maximum current, and 72V voltage rating—should be matched to the target application’s power and signal needs.

Buyers should also confirm standard compliance, specifically IEC 63171-2 (IP20), to ensure interoperability within existing industrial network infrastructure. Mechanical durability considerations, including the 1,000 insertion/removal cycle lifespan and the snap-on buckle retention structure, are relevant for applications with frequent maintenance or reconfiguration. Finally, deployment format—whether a 90° or 180° PCB board socket or a wired plug—should align with the physical layout of the target system, whether that is an edge computing box, an industrial IoT node, a robotics platform, a smart building control system, or a rail transit signal system.

By systematically evaluating these technical parameters against real deployment conditions, engineers and procurement teams can select an SPE Connector suited to the specific demands of long-distance, space-constrained, and power-integrated industrial connectivity applications.
